• Remove the filter, fan and electrical housing
cover from the range hood.
• Use a hammer and screwdriver to remove the knockouts for the electrical cable
and the duct.
• Hold the hood in place and mark the holes for the duct and the cable.
2CUT INSIDE AND
DRILL LOCATOR HOLE
• Cut holes through the drywall or
• Use a long bit to drill holes at each corner all the way through the outside
• Connect the dots between the holes on the
outside to mark the outline of the hole.
• Use a reciprocating saw, saber saw with an extra-long blade, or keyhole saw
to cut the outline.
• Remove insulation or debris that would interfere with installing the duct.
• Push the wall cap into the wall to see if the
duct is long enough to reach the range hood.
• If not, purchase an extension and attach it with sheet metal screws and duct
• Apply caulk to the siding where the cap flange will rest.
• Push the cap into place and fasten with screws.
• Caulk the perimeter of the flange.
5RUN POWER TO
• Shut off power to the circuit.
• Run cable from a nearby receptacle or junction box through the hole in the
• Strip the sheathing and clamp the cable to the range hood electrical
• Mount the hood securely by driving screws into studs or adjacent cabinets.
• Splice the white wire to the white fixture
lead, black wire to black lead, and the ground wire to the green lead.
• Fold the wires into place and replace the electrical cover.
• Reattach the fan and filter.
• Restore power and test.
CLOSER LOOK: VENTING THROUGH A MASONRY WALL

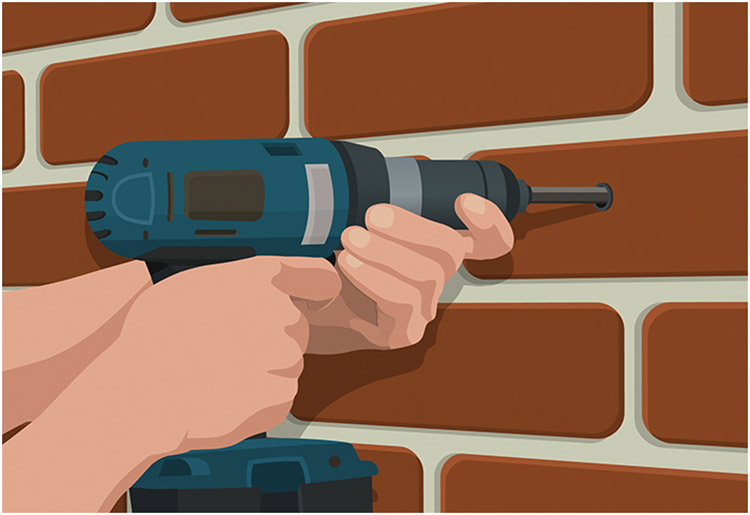

• Use a long masonry bit to drill the locator
• Draw the outline carefully, double-checking that you can slip in the vent
with room to spare.
• Drill holes about every inch along the outline.
• Use a hammer and cold chisel to chip between the holes.

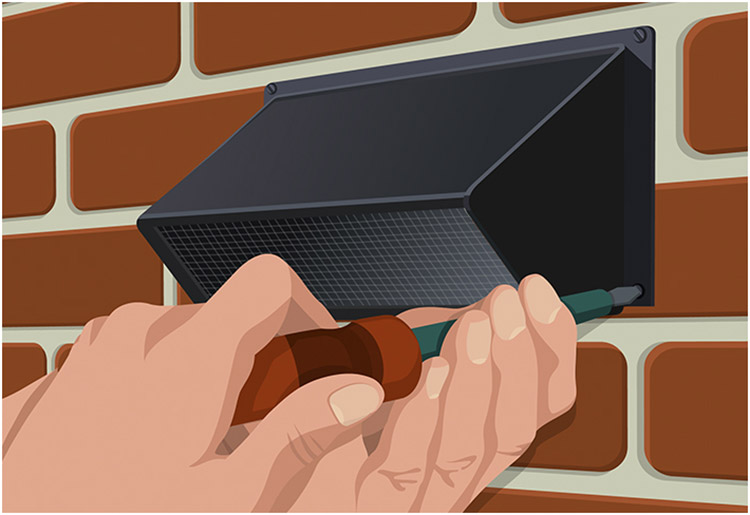

Drill holes and drive masonry screws to attach
the duct cap.
